DIE SETS

Discover Shockmate®, The Next Generation Of Die Sets For Rotary-Draw Tube Bending

As one of the world’s elite die makers, Bend Tooling supplies the entire package for rotary-draw tube and pipe-bending. Our dies are manufactured with Datafacturing®, the most advanced machining technology in the industry, making our new generation of Shockmate® die sets unsurpassed in fit and finish. Whether you need bend, clamp, or pressure dies, Bend Tooling has what you need. Plus, these tube and pipe-bending dies are tough!

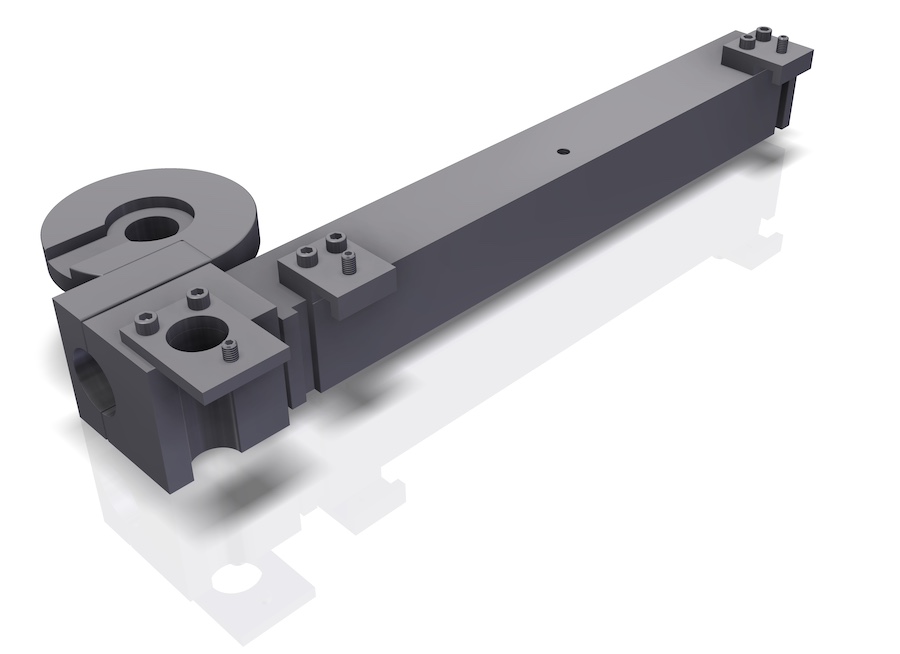

Die Set Features & Options

We offer standard dies and die sets for most tube- and pipe-bending machines:

  • Bend die with precision-machined inserted clamp
  • Reversible for left-hand and right-hand mounting
  • Single keyway
  • Lifting holes for bend dies larger than 8 inches (203mm) in diameter
  • Reversible clamp die with T-key or hanger bracket
  • Reversible pressure die with hanger brackets
  • Non-interlocked
  • Zero-lip die cavities
  • Smooth or V-Type (fine) serrated clamp cavities
  • Proprietary metallurgy and case-hardening for shock-resistance and durability

Options for standard die sets:

  • Double-inserted bend die
  • Double keyway and closed-end keyway
  • Precision posthole shoulders for mounting to tie-bar
  • Interlocked
  • Captive-lip die cavities
  • Carbide grip coating, or aggressive serrated clamp cavities

Stackable die sets (for multi-bend operations):

  • Includes all features and options of our standard tube and pipe bending die sets
  • Inter-die locating keys and hubs

Tapered-leaf die sets (for square and rectangular tubing):

  • Bend die with precision-machined inserted clamp
  • Double thru-keyway or double closed-end keyway
  • Lifting holes (for bend dies larger than 12 inches in diameter)
  • Clamp die with T-key or hanger bracket
  • Pressure die with hanger brackets
  • Tapered-leaf cavity interlock to ensure tight closure around tubing and easy release of tubing upon completion of the bend
  • Proprietary metallurgy and case-hardening for shock-resistance and durability

Platform die sets (for small-radius and serpentine bends):

  • Bend die with precision-machined inserted clamp
  • Clamp die with T-key or hanger bracket
  • Pressure die with hanger brackets
  • Non-interlocked (interlocking dies are optional)
  • Zero-lip die cavities (captive-lip dies are optional)
  • Smooth or serrated clamp cavities
  • Proprietary metallurgy and case-hardening for shock-resistance and durability on our pipe and tube bending die set

Additional Components

Bend Tooling also makes available separately all of the minor components your tool set from us needs including:

  • Clamp insert assembly screws
  • T-keys and T-key screws for clamp dies
  • Mounting plates and related screws for Pines clamp dies
  • Hanger bracket and related screws for pressure dies
  • Keys, pilots, and related screws for mounting and stacking bend dies

Requests for Quotation

Click here to receive pricing, delivery and specifications of the tooling you need including complete sets of tools, mandrel tooling and wiper tooling.
